Radiant Floor Wastes

A Radiant tile insert floor waste is a drainage grate designed to be filled with a matching floor tile, so the waste disappears visually into the surrounding floor instead of standing out as a separate metal grate. This is the defining feature of the Radiant range and the reason it is specified so often in high-end bathroom and wet area fitouts.

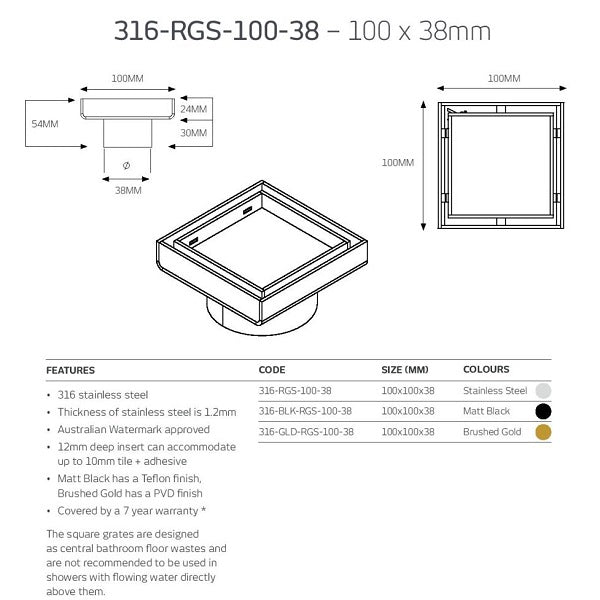

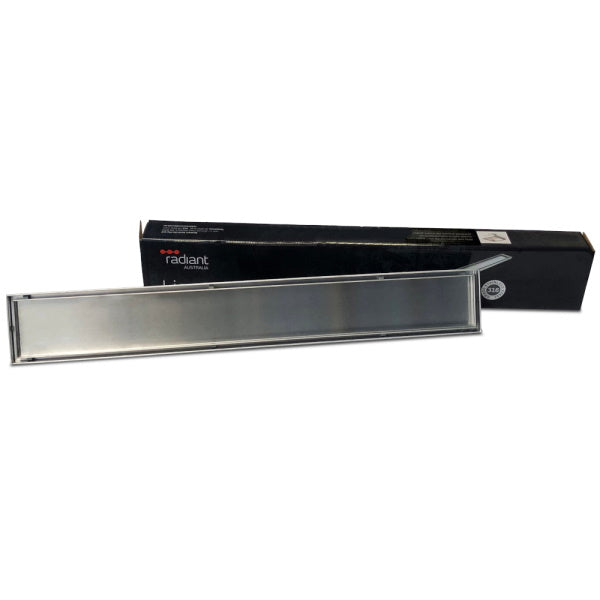

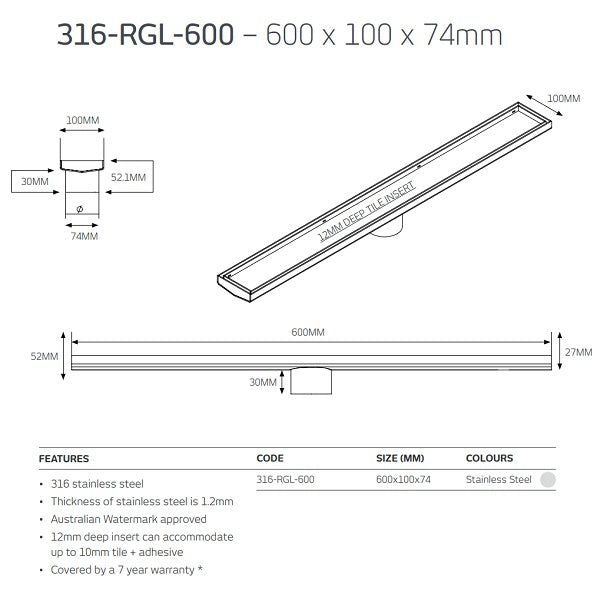

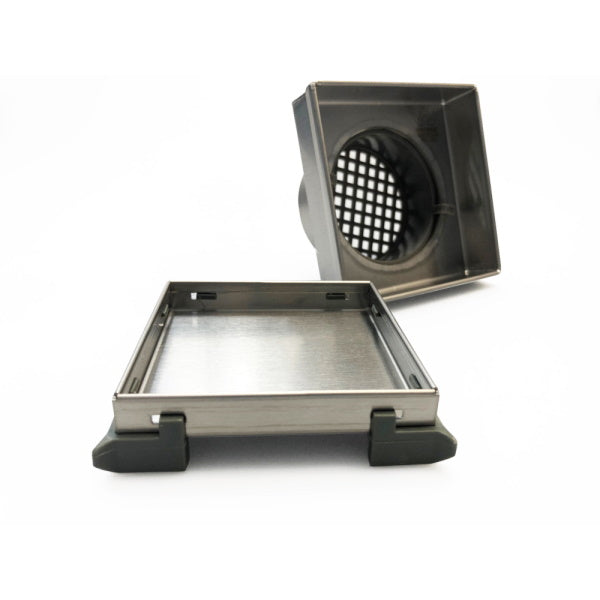

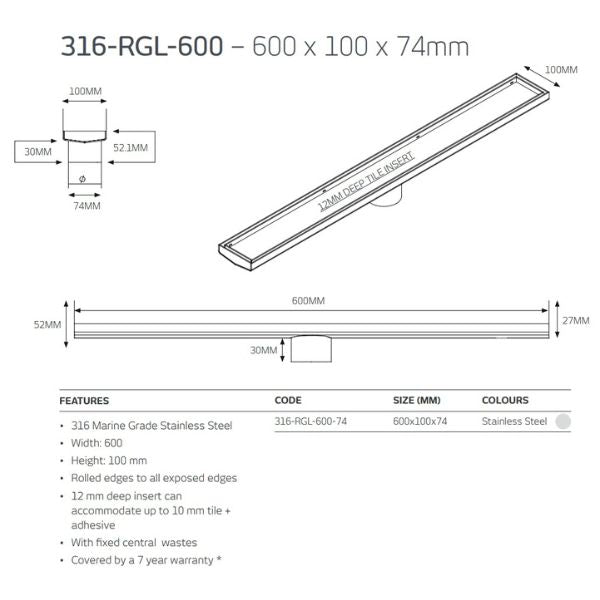

What a tile insert floor waste actually is

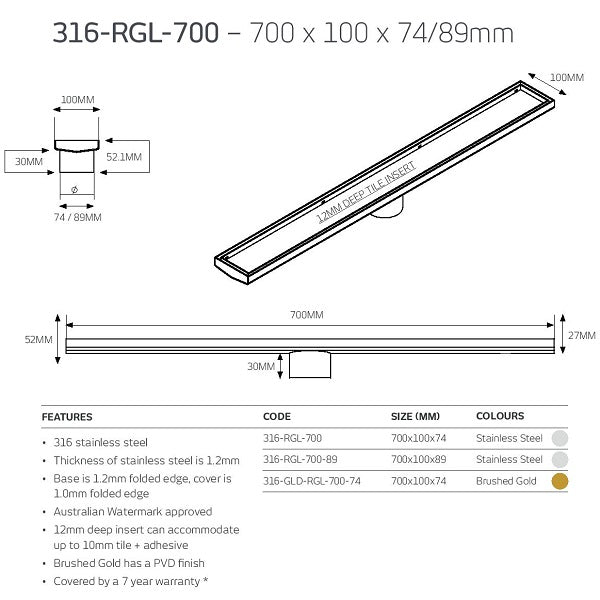

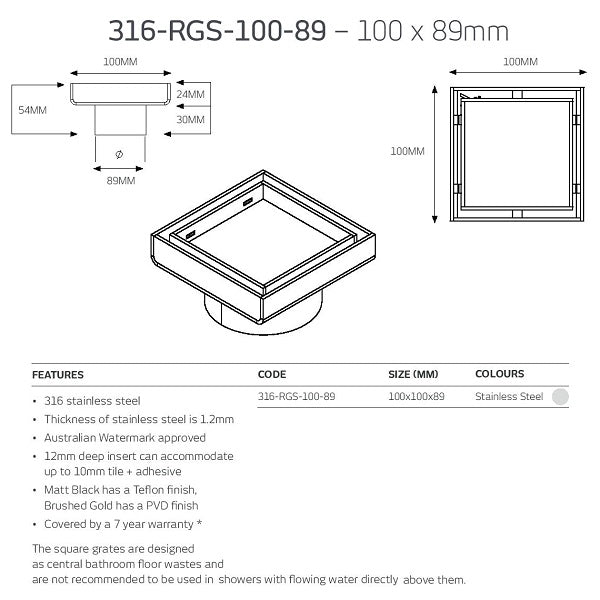

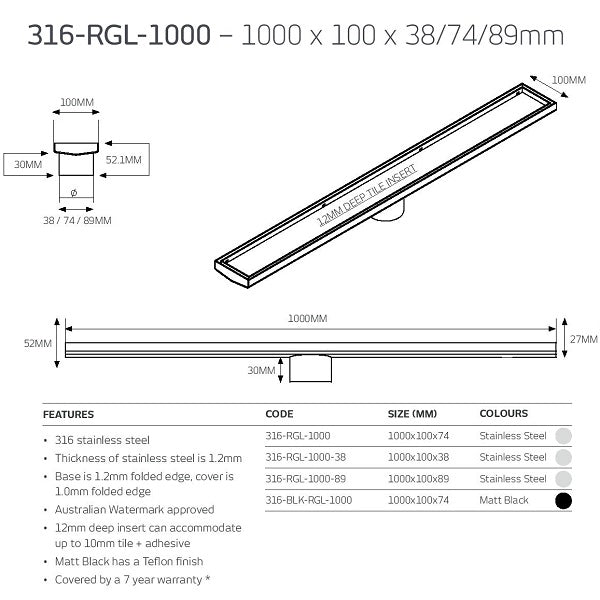

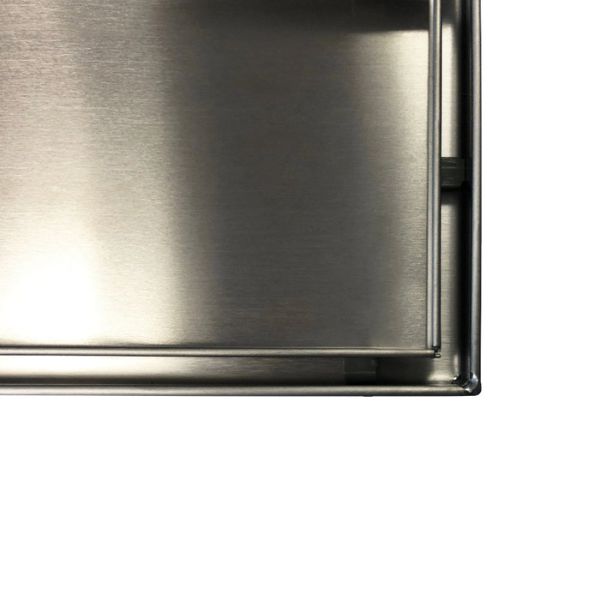

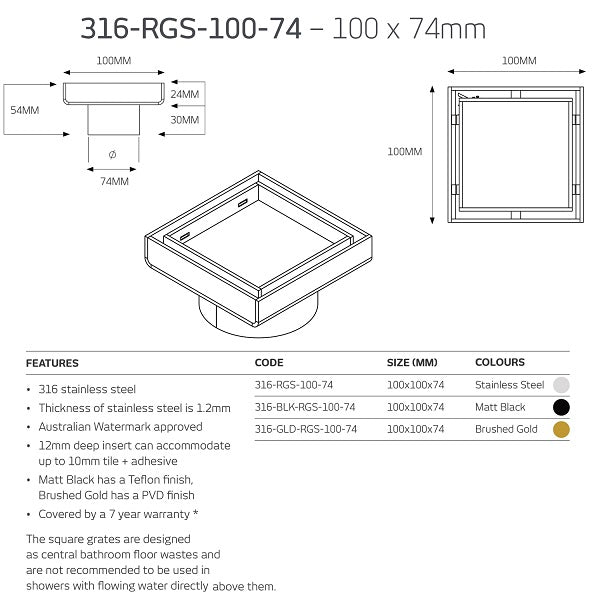

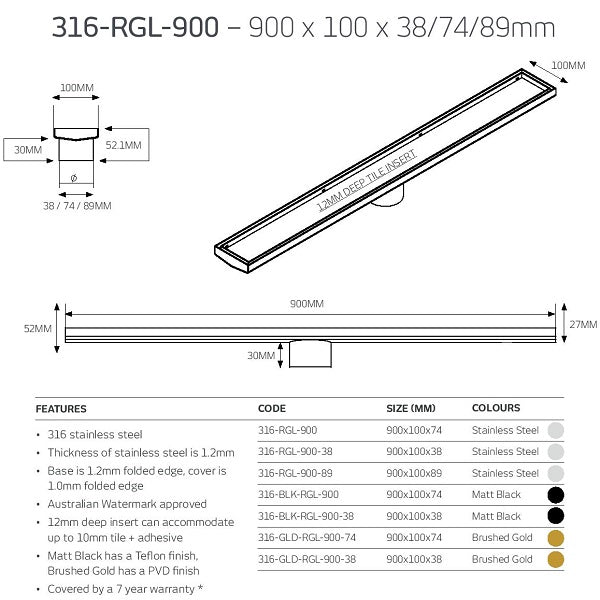

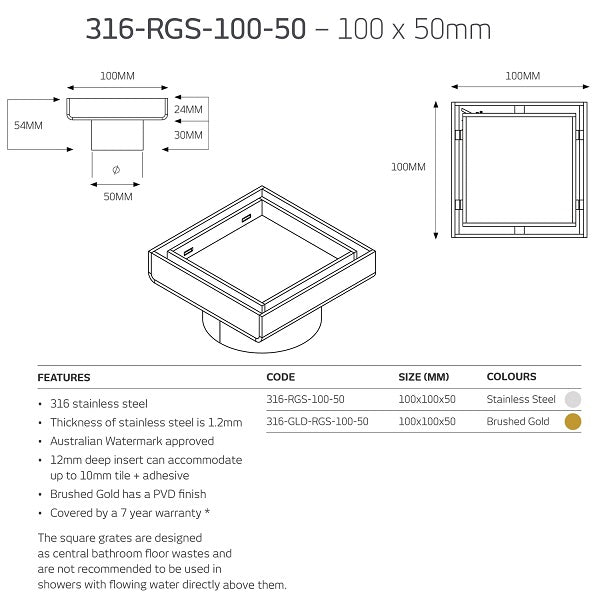

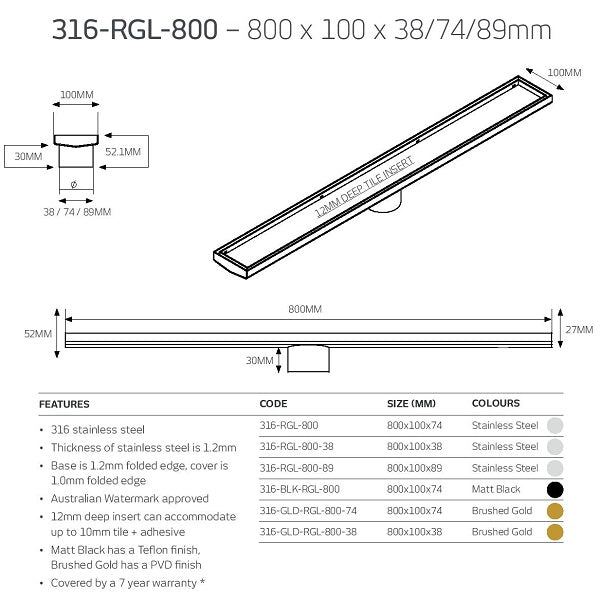

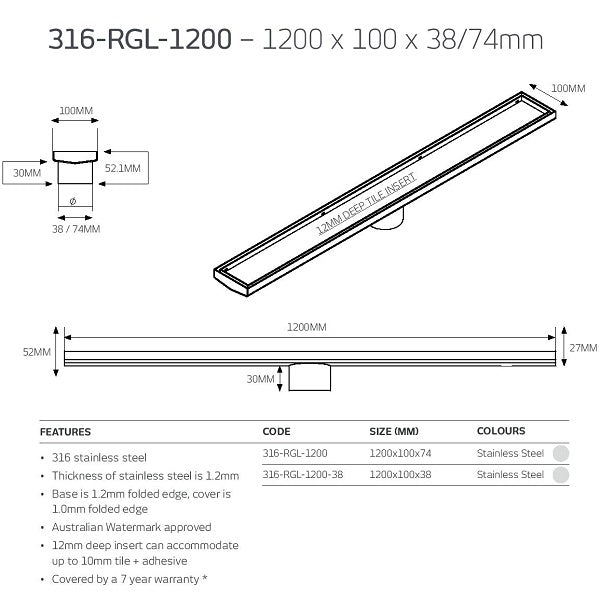

Rather than showing a stainless steel or coloured surface, a radiant tile insert has a shallow recessed tray in the centre of the grate body that a tiler cuts a matching tile piece to fit into. Once installed and grouted, the drainage point reads as continuous floor tiling with only a slim perimeter gap for water to run to. This is the main reason designers specify radiant tiles over a standard floor grate, since it removes the visual break that a metal grate creates in a tiled floor, especially in large-format tile installations where pattern continuity matters.

Where tile insert grates are used

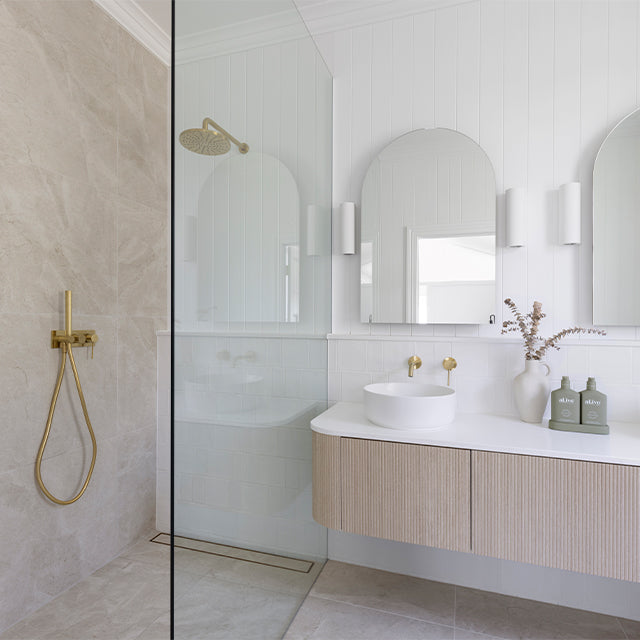

Radiant tile insert floor wastes are most common in bathrooms, ensuites and laundries where the floor tile runs continuously through a shower recess or wet area. They also suit alfresco and outdoor tiled areas where a visible metal grate would interrupt the paving pattern. Because the insert tray is shallow, tile insert grates work best with tiles under around 12mm thick, so check your tile thickness against the product specification before ordering, particularly for stone tiles which can run thicker than porcelain.

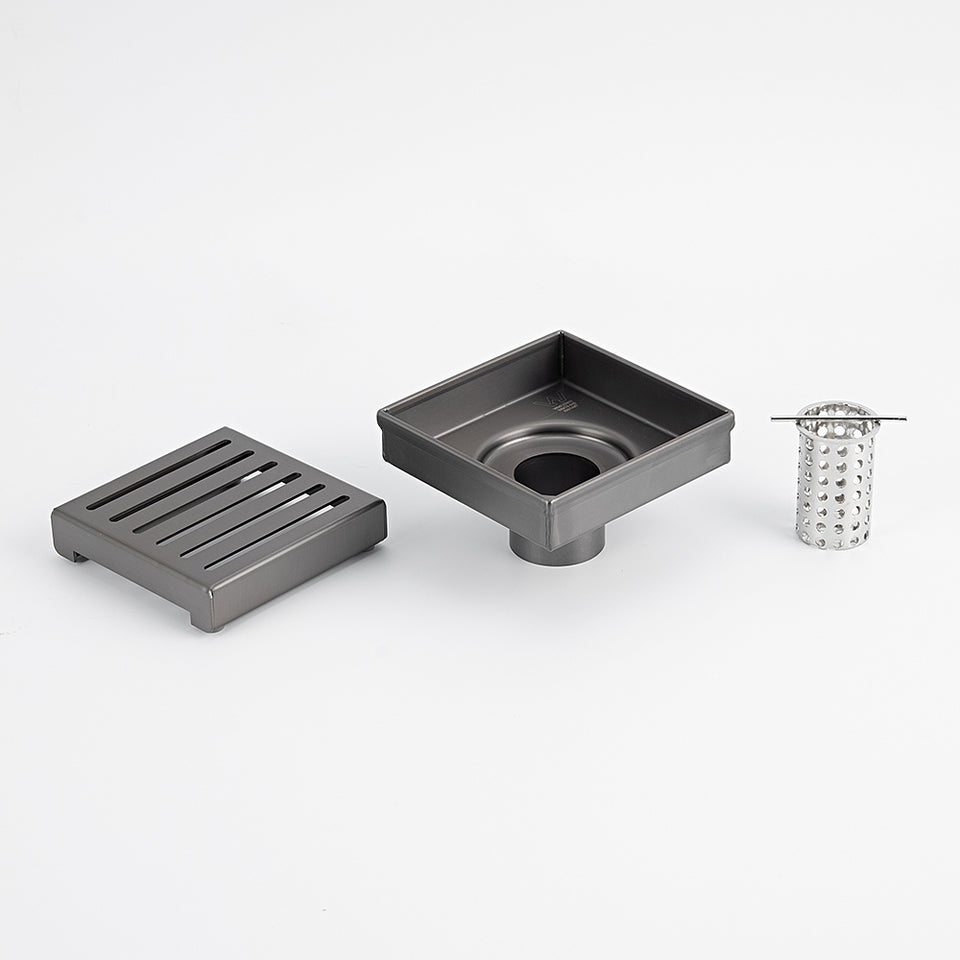

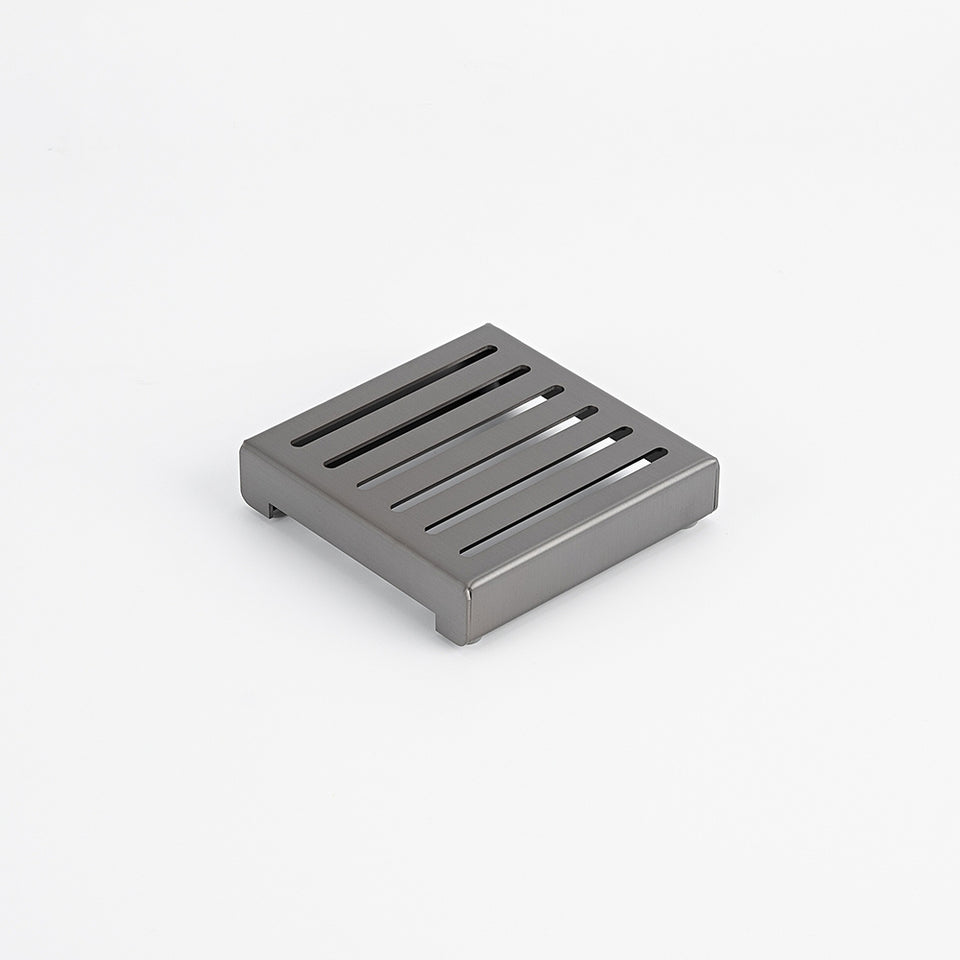

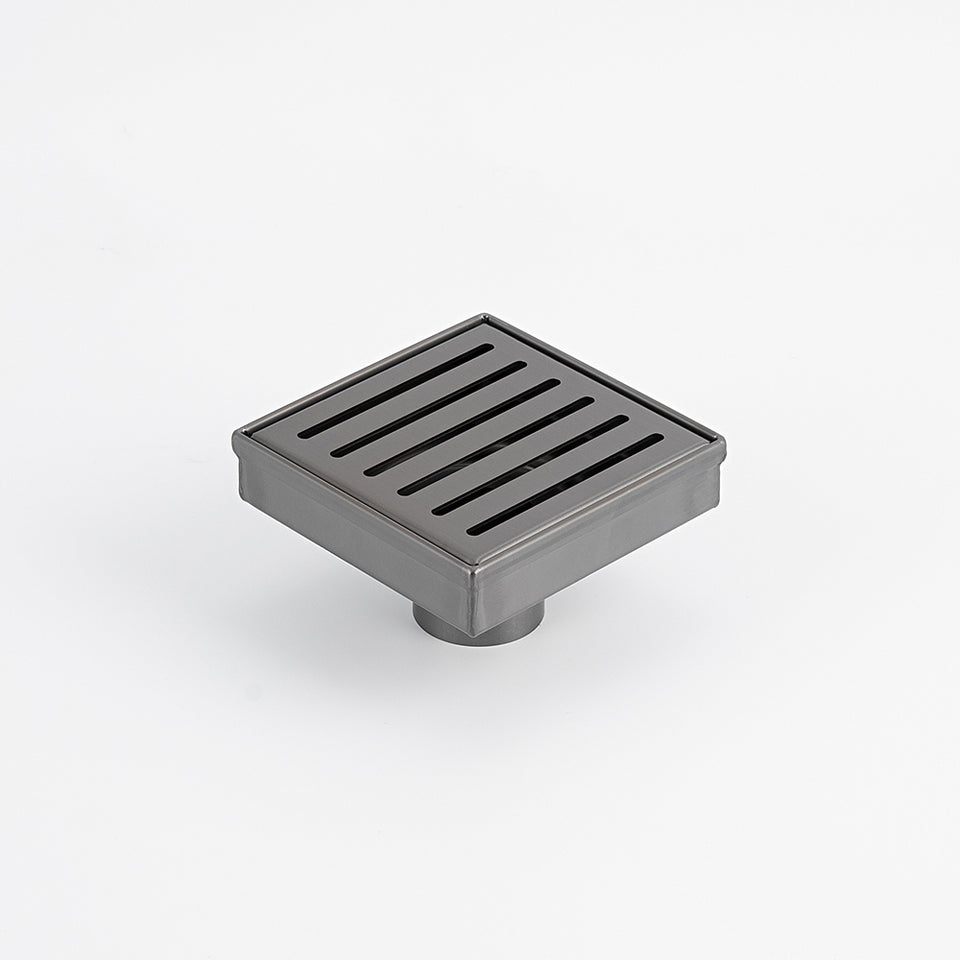

Stainless steel floor wastes and grate finishes

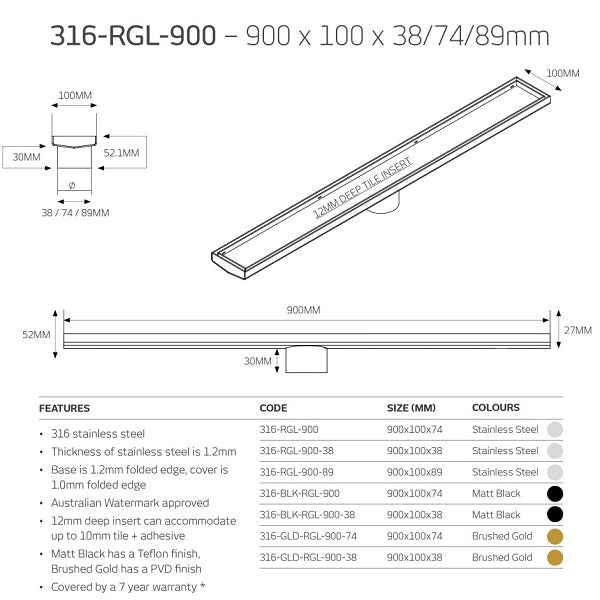

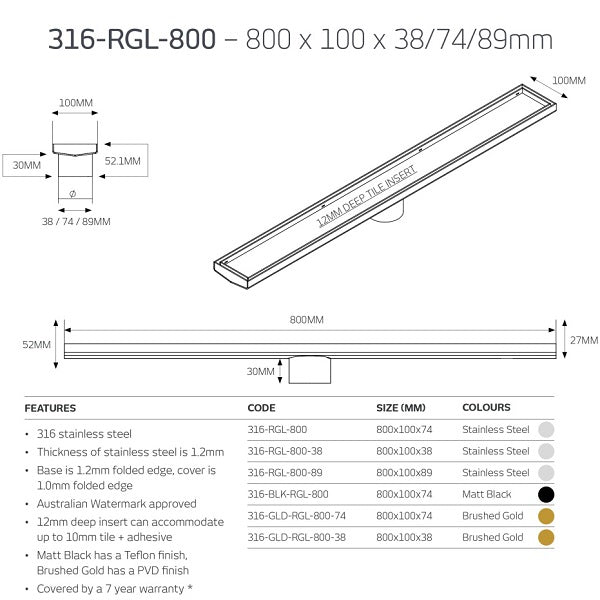

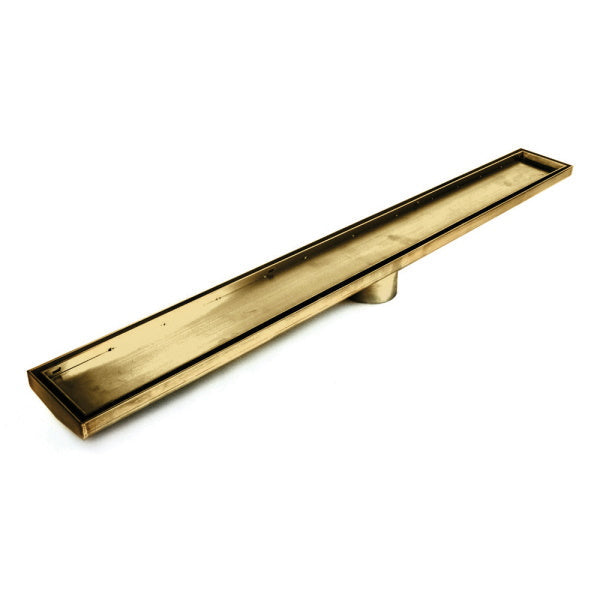

Not every project calls for a tile insert. The Radiant range also includes standard stainless steel floor wastes with a visible grate face, which suit areas where a tiled insert is not practical or where a clean stainless finish is the preferred look. Stainless floor grates resist corrosion and staining better than painted or coated alternatives, which matters in wet areas that see constant water exposure. For a decorative alternative to plain stainless, gold and gunmetal floor grates are available across the Radiant range, giving a warmer or darker metal tone that matches brushed brass or matte black tapware suites increasingly common in Australian bathroom design.

Floor grates, drop-in grates and architectural styles

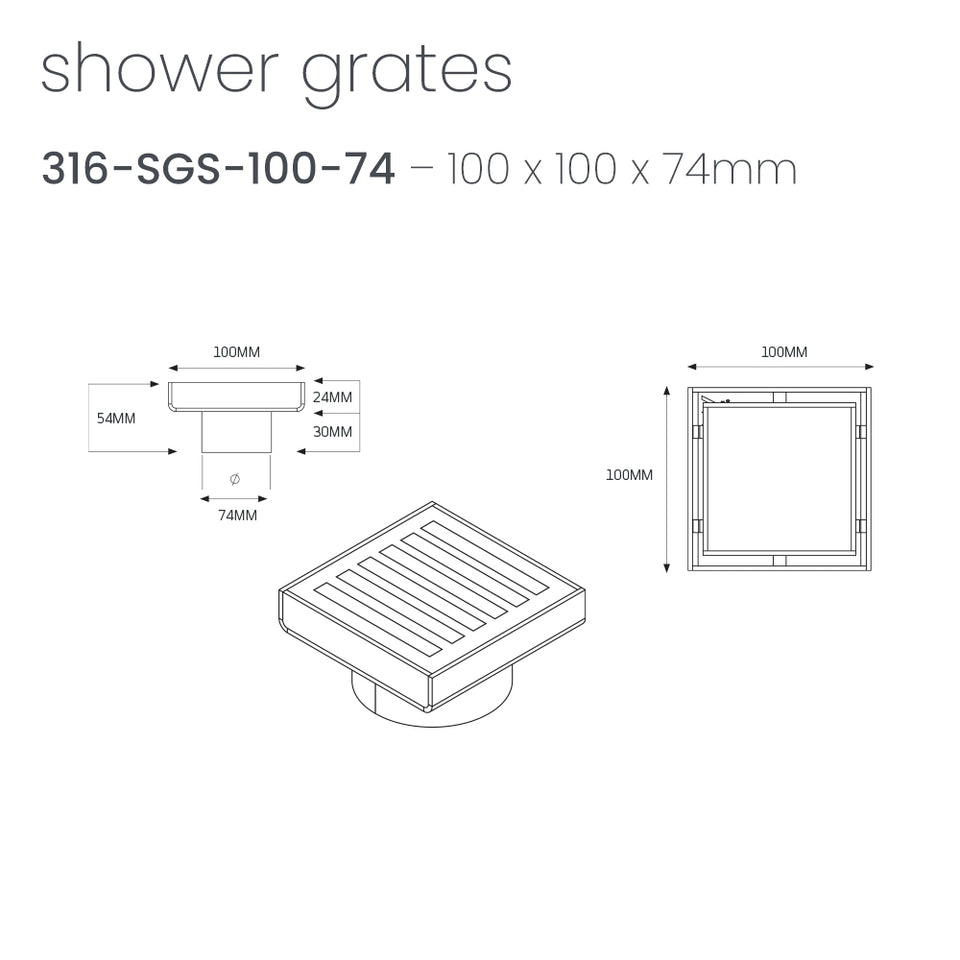

Beyond the tile insert option, floor grates come in several patterns, from simple linear slot designs to more decorative grid and architectural styles. A drop-in floor grate sits into a pre-formed channel or point waste body, which simplifies installation compared to grates that need to be fully integrated with the waterproofing membrane during construction. Architectural floor grates with finer, more uniform patterning are typically chosen for commercial or higher-spec residential fitouts where the grate itself is a visible design element rather than something to be hidden.

Coloured floor wastes and matching your fitout

Coloured floor wastes let the drainage point match rather than contrast with surrounding tapware and fittings. Beyond gold and gunmetal, most of the Radiant range is available in a spread of finishes so you can match the floor waste to your shower screen hardware, tapware and any other exposed metal fittings in the same wet area, keeping the finish palette consistent from floor to fixture.

Sizing and floor trap considerations

Floor traps with grating need to be matched to your existing plumbing rough-in and floor waste pipe location, so measure the point waste or channel position before selecting a grate. Getting this measurement wrong is one of the most common causes of on-site delays during a bathroom renovation, since grates and trap bodies are not always interchangeable between brands.

Delivery and returns

Radiant floor wastes and grates ship Australia-wide. If you are unsure which grate pattern or finish suits your tile and fitout, our 60-day returns policy allows you to return an unused, unfitted item if it turns out not to be the right match once you see it against your tiles.
